Model
|

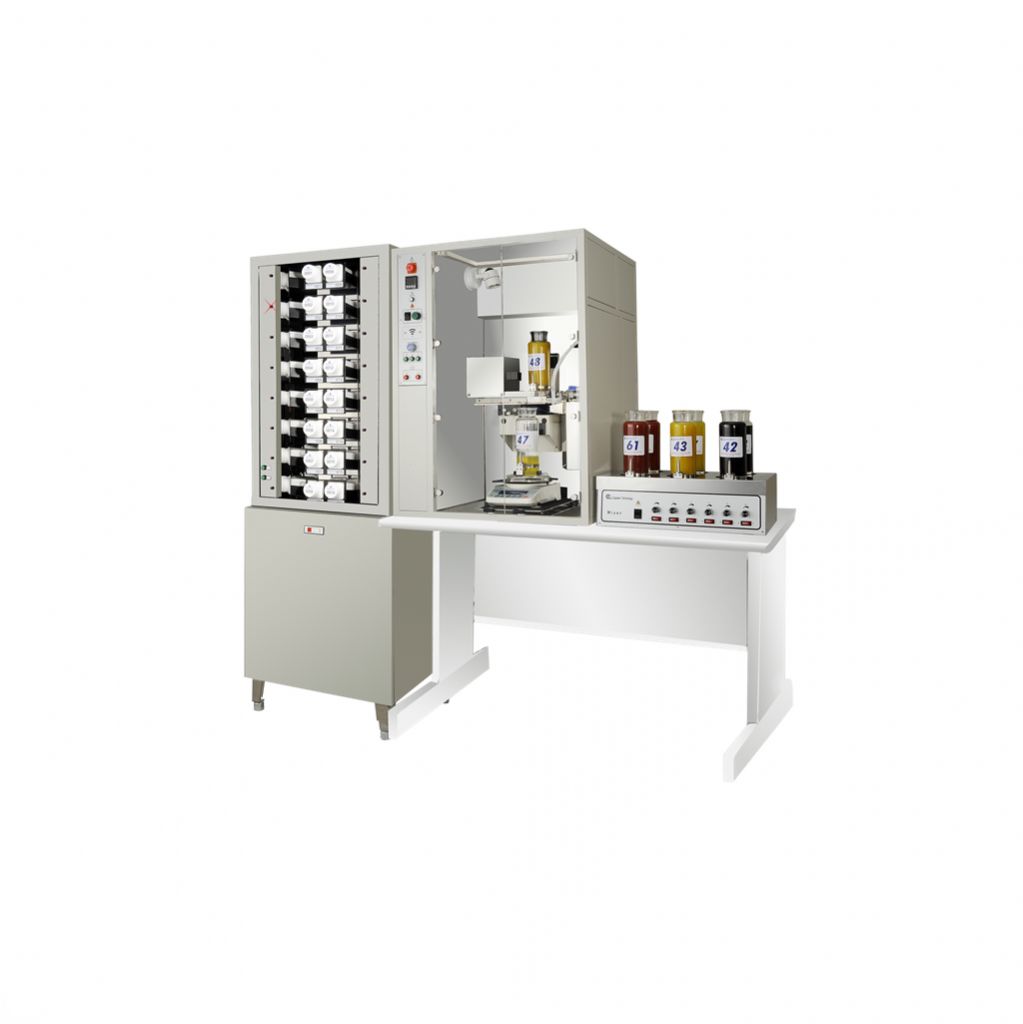

CADS MG iCombo
|
|
57/08
|
|
Number of 1L tubeless bottles
|
19
|
|
Number of 0.8L tubeless bottles
|
38
|
|
Total number of tubeless bottles
|
57
|
|
Number of dedicated aux. bottles
|
4
|
|
Size of aux. bottles incl. refill
|
(5L)
|
| Number of Scale |
2 |
|
Min. diameter of dye pot (mm)
|
50
|
|
Flow rate of tubeless valves (g/min)
|
100~240
|
|
Include CAMS(PLC)
|
Yes
|
|
Power Wattage for dispenser side
|
1KVA
|
|
Power Wattage for solution maker side
|
3.5KVA
|
|
Control Kernel
|
PLC
|
|
Dimensions(WxDxH)(mm)
|
|
|
Layout Drawing：
|
|
• CADS MG iCombo 57/08
|
|
|
• Special actuator module, high speed dispensing
|
|
|
• Tubeless dispensing, high accuracy
|
Optional：
|
|
• Special actuator module, high speed dispensing
|
|
|
• Automatic Pressurize Design for Auxiliary & Water Bottles
|
