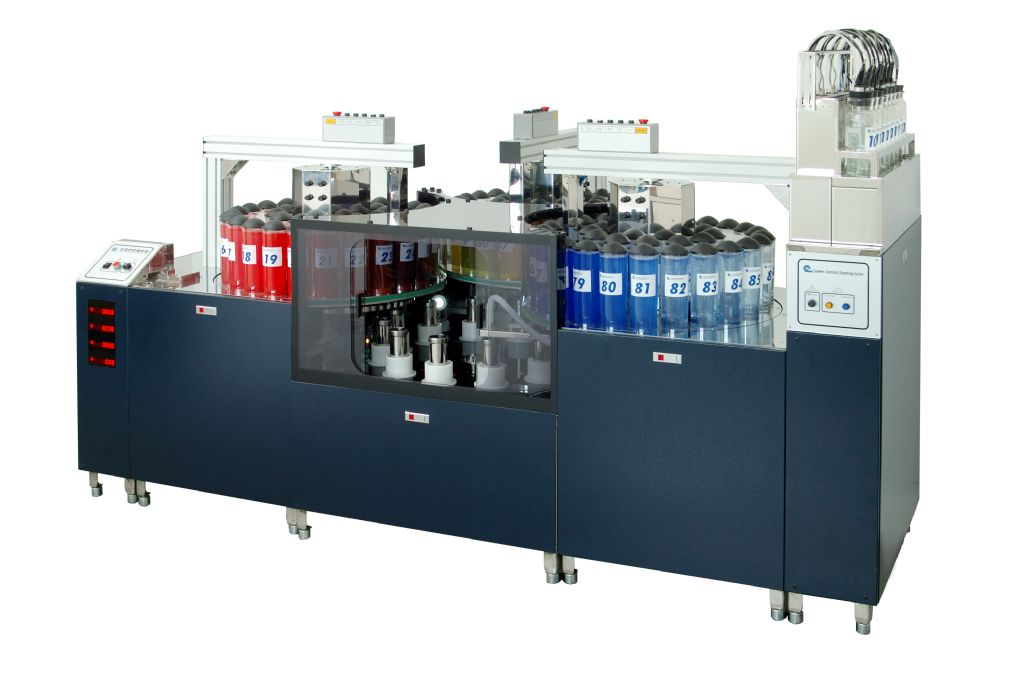

Dispensing System CADS MG - STANDARD

To ensure the fastest possible speed of dispensing and good repetition.


•  Precise dispensing valve, with maximum accuracy and traceability
•  Turn-table design, high speed dispensing
•  Gravimetric dispensing, maximum accuracy and traceability
•  Automatic detection and warning function
•  Easy to change dye solution, no pollution and good expansion
•  No need for regular cleaning, no block problem, good reproducibility
•  No need for start-up, more convenient for operator
•  Windows Software, easy to operate
•  Multi-tasks operations and good expansion, you can link with other operation systems to have the fully integrated system in your laboratory and provide you the entire dyeing process

Model

CADS MG

CADS MG

CADS MG

CADS MG

36/00

72/00

108/00

144/00

Number of 1L tubeless bottles

36+0+0

36+0+36

36+36+36

48+48+48

Number of 0.8L tubeless bottles

0

0

0

0

Total number of tubeless bottles

36

72

108

144

Number of dedicated aux. bottles

3

4

5

5

Size of aux. bottles incl. refill

(5L)

(5L)

(5L)

(5L)

Number of Scale

2

3

4

4

Min. diameter of dye pot (mm)

50

50

50

50

Flow rate of tubeless valves (g/min)

100~240

100~240

100~240

100~240

Power Wattage

1KVA

1.5KVA

2KVA

2KVA

Control Kernel

PCB/PLC

PCB/PLC

PCB/PLC

PCB/PLC

PCB Dimensions

(WxDxH)(mm)

 2195x910x1495

 2860x910x1495

 2860x1595x1495

 3540x2055x1495

PLC Dimensions

(WxDxH)(mm)

 2095x910x1495

 2740x910x1495

 2740x1595x1495

 3420x2055x1495


Layout Drawing:

• CADS MG 36/00

• CADS MG 72/00

• CADS MG 108/00

• CADS MG 144/00



CADS-MG2-10800-PLC

• Special actuator module, high speed dispensing

• Tubeless dispensing, high accuracy


Optional

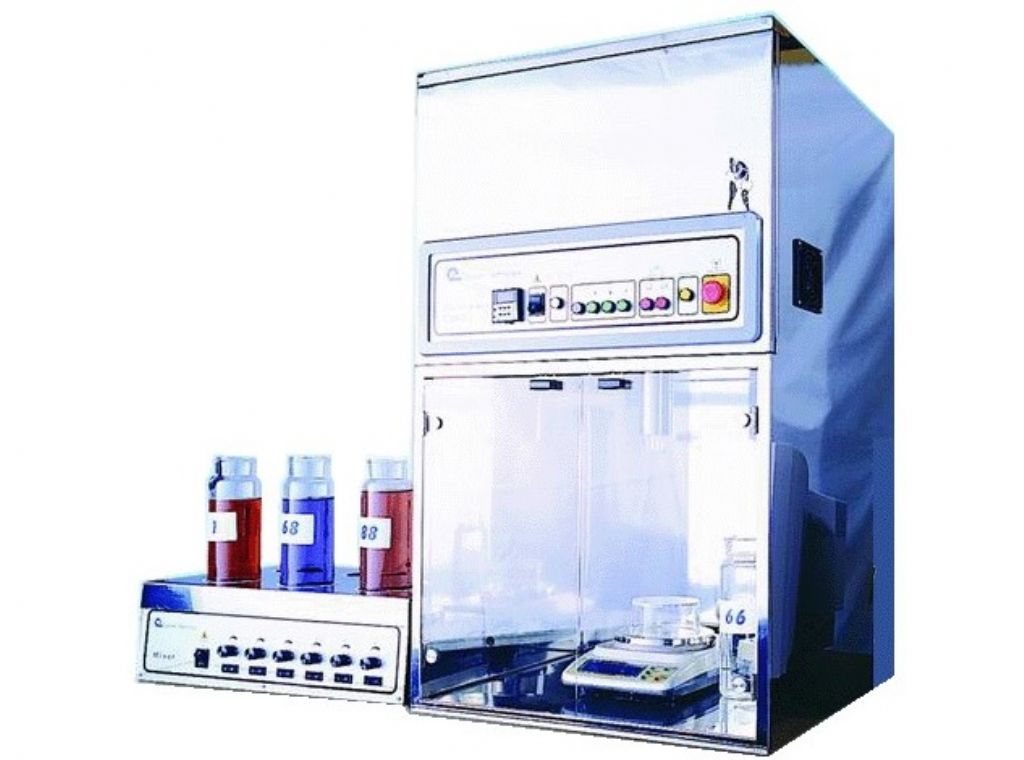

• Cup Feeder

• Special actuator module, high speed dispensing

• Automatic Pressurize Design for Auxiliary & Water Bottles
